| Available sizes(Rectangular autoclave) | |||||||
|---|---|---|---|---|---|---|---|
| Sr. no. |
Chamber Width (m.m.) |
Chamber Height (m.m.) |
Chamber Depth (m.m.) |
Chamber Volume (m.m.) |
Steam Generator Capacity (liters / kw) |
Floor Space (width/Depth) |
Door Movement option |
| 1 | 450 | 450 | 1050 | 210 | 25/12 | 1100/1400 | Manual /automatic vertical sliding |
| 2 | 600 | 600 | 1200 | 430 | 30/12 | 1300/ 1500 | Manual /automatic vertical sliding |
| 3 | 900 | 900 | 1200 | 970 | 45/18 | 2000/ 1500 | Manual /automatic horizontal sliding |
| Note :- Special size can be fabricated as per customer's requirement | |||||||

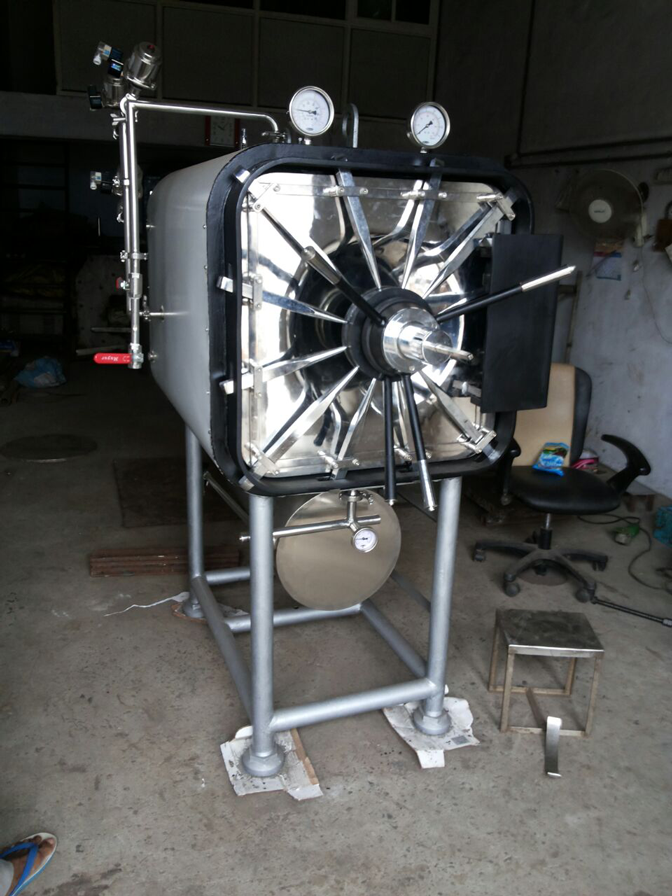

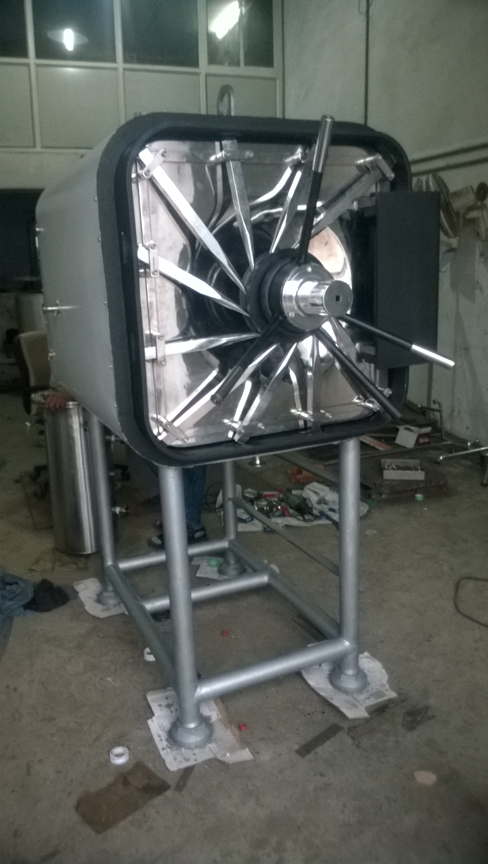

The unit has outer chamber, inner chamber, boiler, lid and jacket all made of 316/304 grade stainless steel
All Function of process will be automatic governing by PLC base automation.
Automatic purging system.
Standard & also customer defined process cycle are provide.
Automatic vacuum system
It is supplied complete with vacuum breaker , water level indicator , steam trap and automatic pressure control switch , two safety valve.
Running Process parameter will display on HMI.
The whole unit is mounted on a tubular stand.
Pressure lock device for door.
Operating on 3phase , 440 volts AC supply.
Steam trap is incorporated in discharge line for fast and perfect elimination of air.
Working temperature 121'C/134'C.
Hydro test at 3.5 kgf/cm2(35psi).
Electrically heated by special flange type immersion type heater to work on 440 volts three phase supply.
The pressure inside the chamber is variable from 5 psi to 20 psi but the normal recommended pressure for sterilization process is 1.2 &2.3kgf /cm2 (15 psi - 17 psi).
Sterilization of varied hospital Pharmaceutical equipment like gloves, linen, gauze, cotton, instruments, glassware etc.
Manual door ,automatic vertical sliding door, automatic horizontal sliding door.
PLC base automation.
Box type outer structure.
